K-DAG Solar lighting Fence



K-DAG Solar lighting Fence

-------------------------------------------------------------------------------------------------------------------------------------

Introduction :

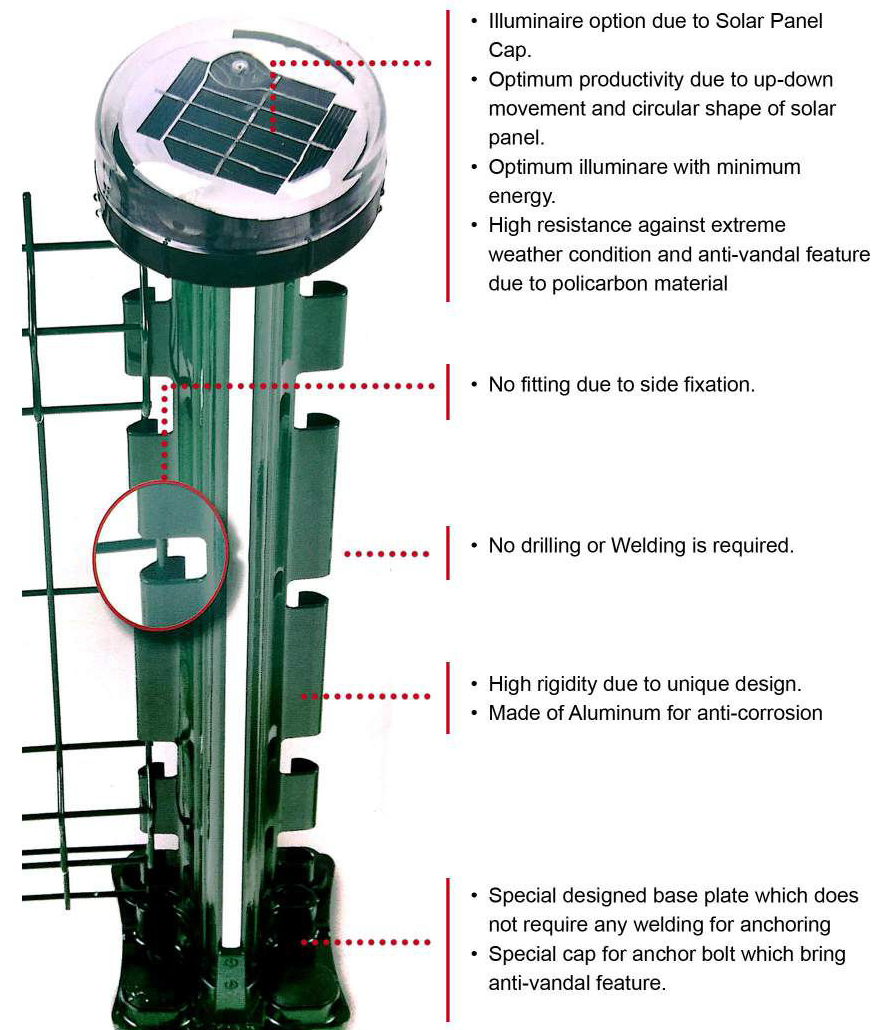

Post :

• Illuminaire option due to Solar Panel Cap.


• Optimum productivity due to up-down movement and circular shape of solar panel.


• Optimum illuminaire with minimum energy.


• High resistance against extreme weather condition and anti-vandal feature due to policarbon material.


• Suitable for corner application up to 135 degrees.


• No drilling or Welding is required.


• Suitable for sloppy terrain due to flexibility attributed to side notches of post.


• No fitting due to side fixation.


• High rigidity due to unique design.


• Made of Aluminum for anti-corrosion


• Special deswigned base plate which dose not require any welding for anchoring Special cap for anchor bolt which bring anti-vandanl feature

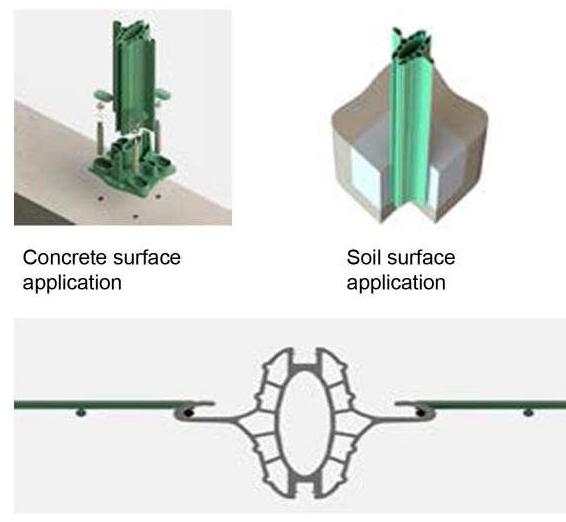

K-DAG Aluminum Post Installation :

Finish options :

Products are hot deep Galvanize to BS EN 1461
Galvanized and Powder coated to BS EN 13438
Only powder coating to non standard
Marine coat Coating for application near salt water

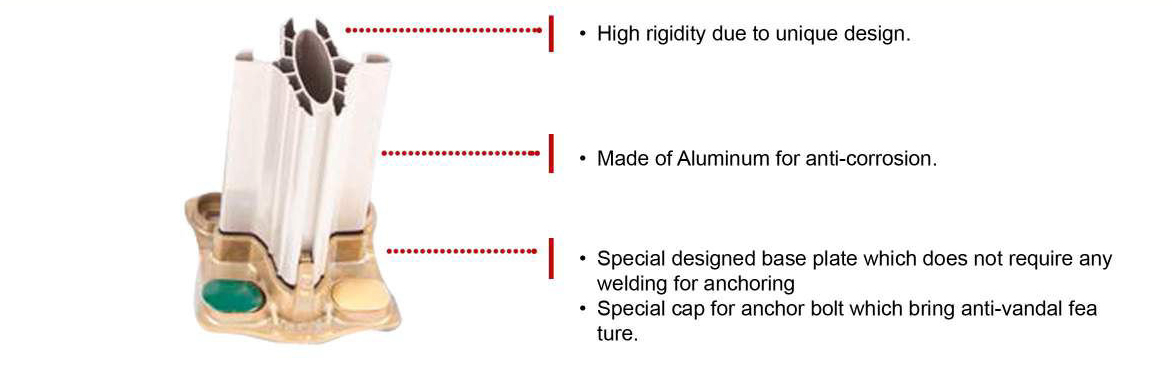

Standard K-DAG Posts :

Standerd Dimension:

Code	Technical Specification	Standard Fence Post	K-DAG Post
K-DAG	Drilling Process	Yes	No
	Fittings	Yes	No
	Weldings	Yes	No
	Additional Post at Corner App.	Yes	No
	Slop Terrain	Fixation hole opens based on terrain slop	Suitable for sloppy Terrains
	Aesthetic	50x50mm or 60x60mm SHS Profile	Special designed for fence usage
	Maintenace Cost	Require maintenance	Maintenance free
	Various Welded fence Systems	Difference Welded fence systems requires	Suitable for all welded fence systems
	Corrosion	Metal yes	Aluminium:No
	Savings	100m Panel at 100	96 Panel at 100m
